Introduction

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--use IEEE.NUMERIC_STD.ALL;

-- Uncomment the following library declaration if instantiating
-- any Xilinx leaf cells in this code.
--library UNISIM;
--use UNISIM.VComponents.all;

entity led is
Port(
     switch_1 : in std_logic;
     switch_2 : in std_logic;
     led_1: out std_logic;
     led_2: out std_logic
);
--  Port ( );
end led;

architecture Behavioral of led is

begin
led_1 <= switch_1;
led_2 <= switch_2;

end Behavioral;

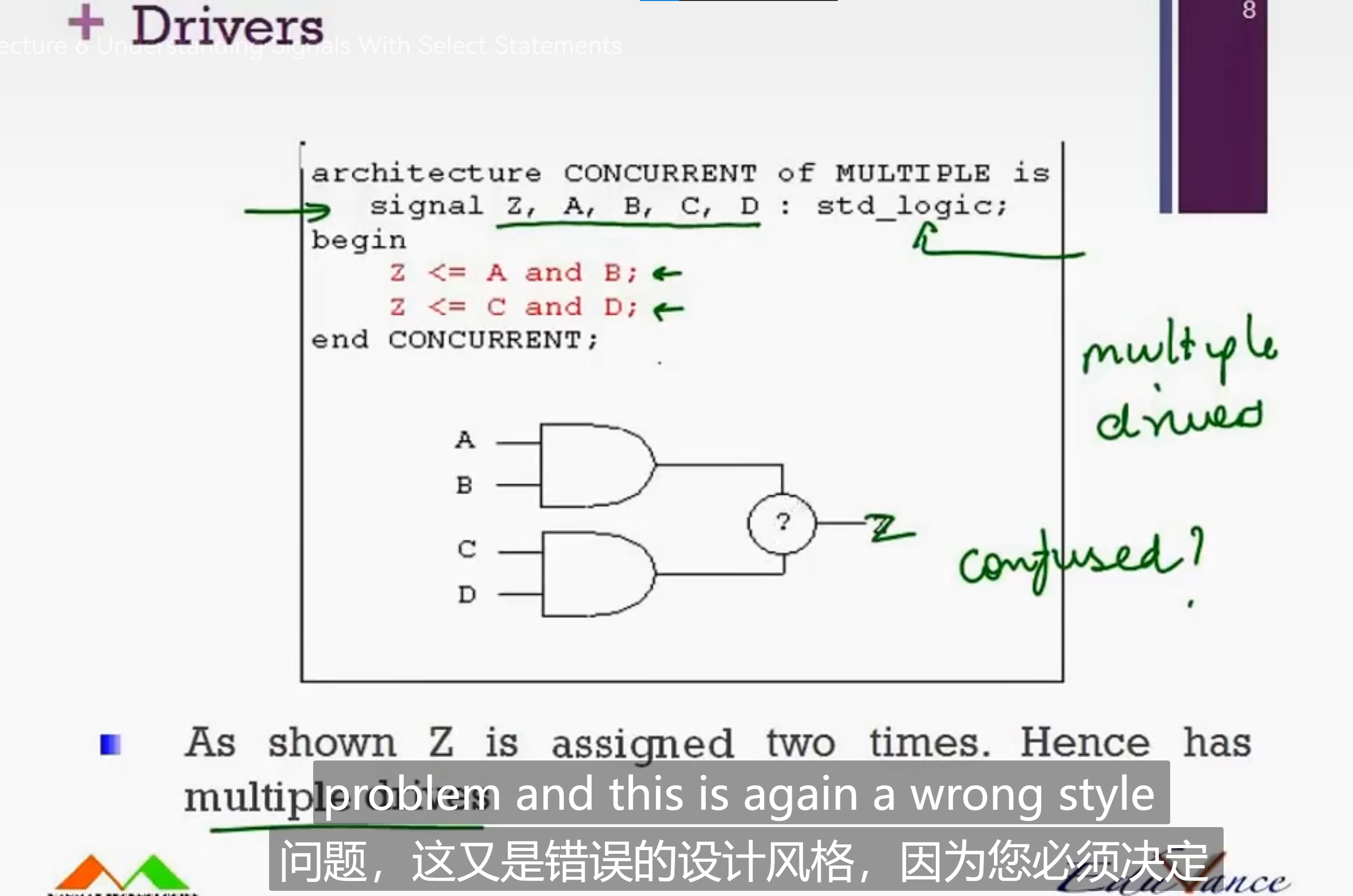

architecture中的语句都是并行（同时）执行，不是顺序执行

• 横坐标和纵坐标同时assign，看最后的结果是什么

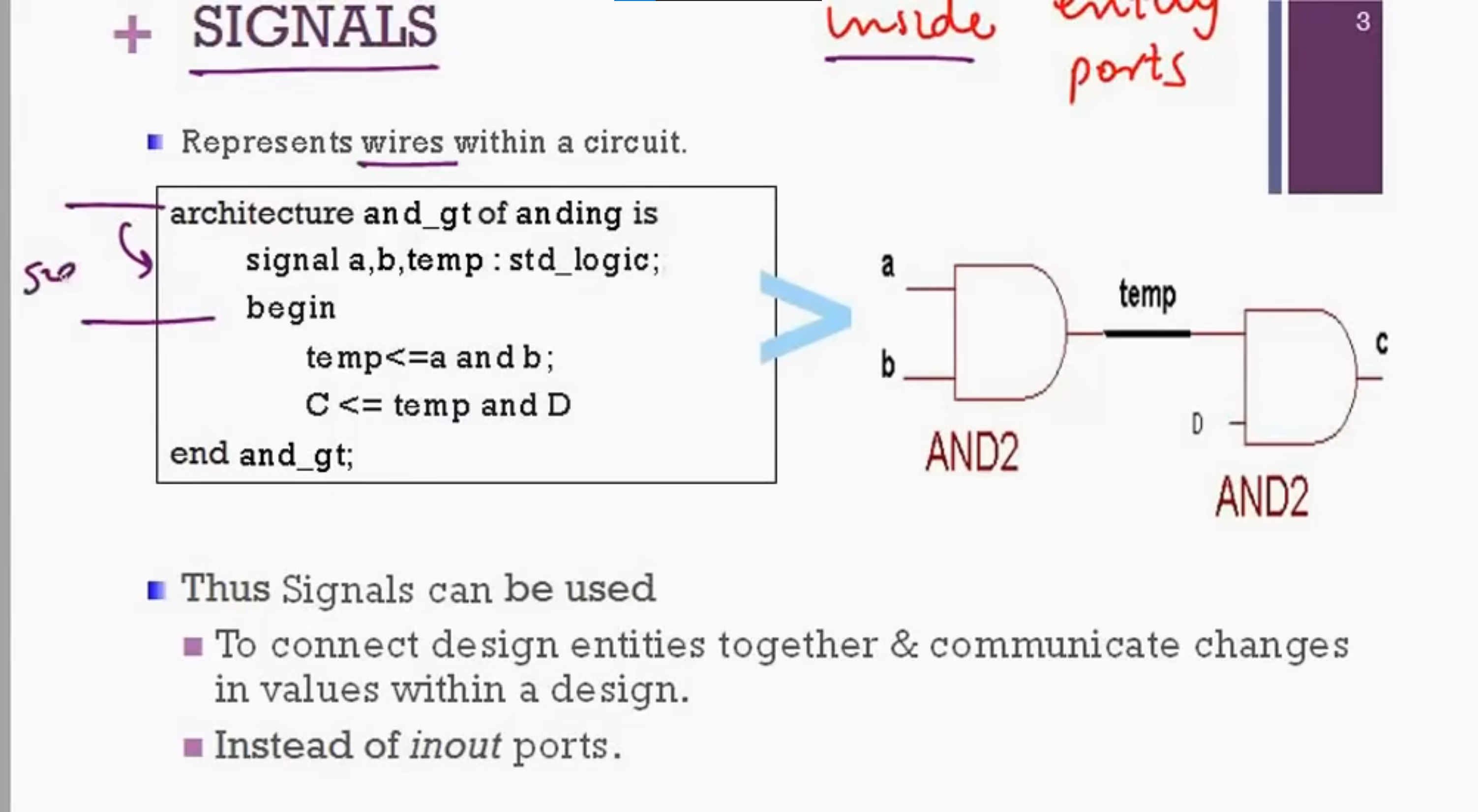

signal

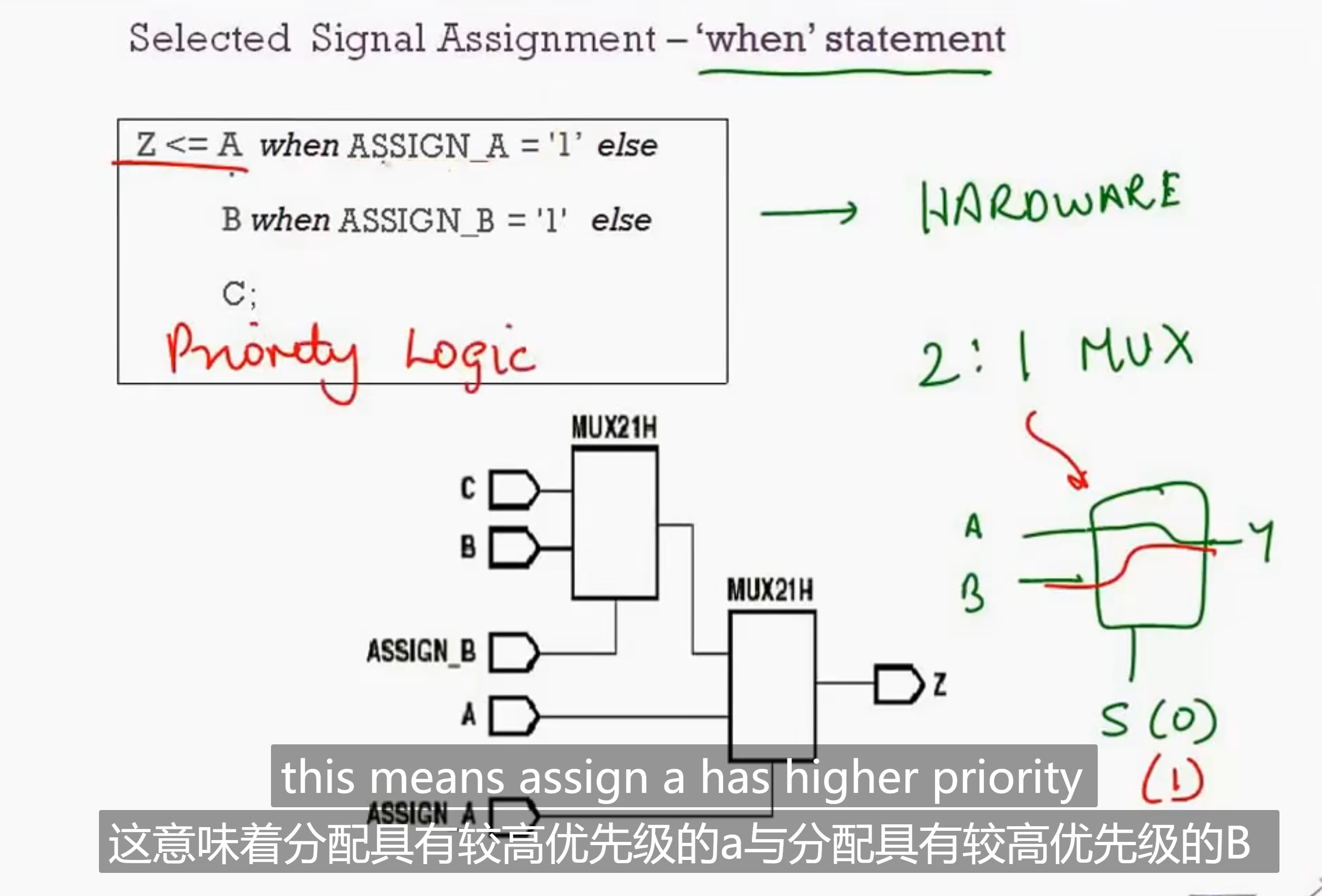

When

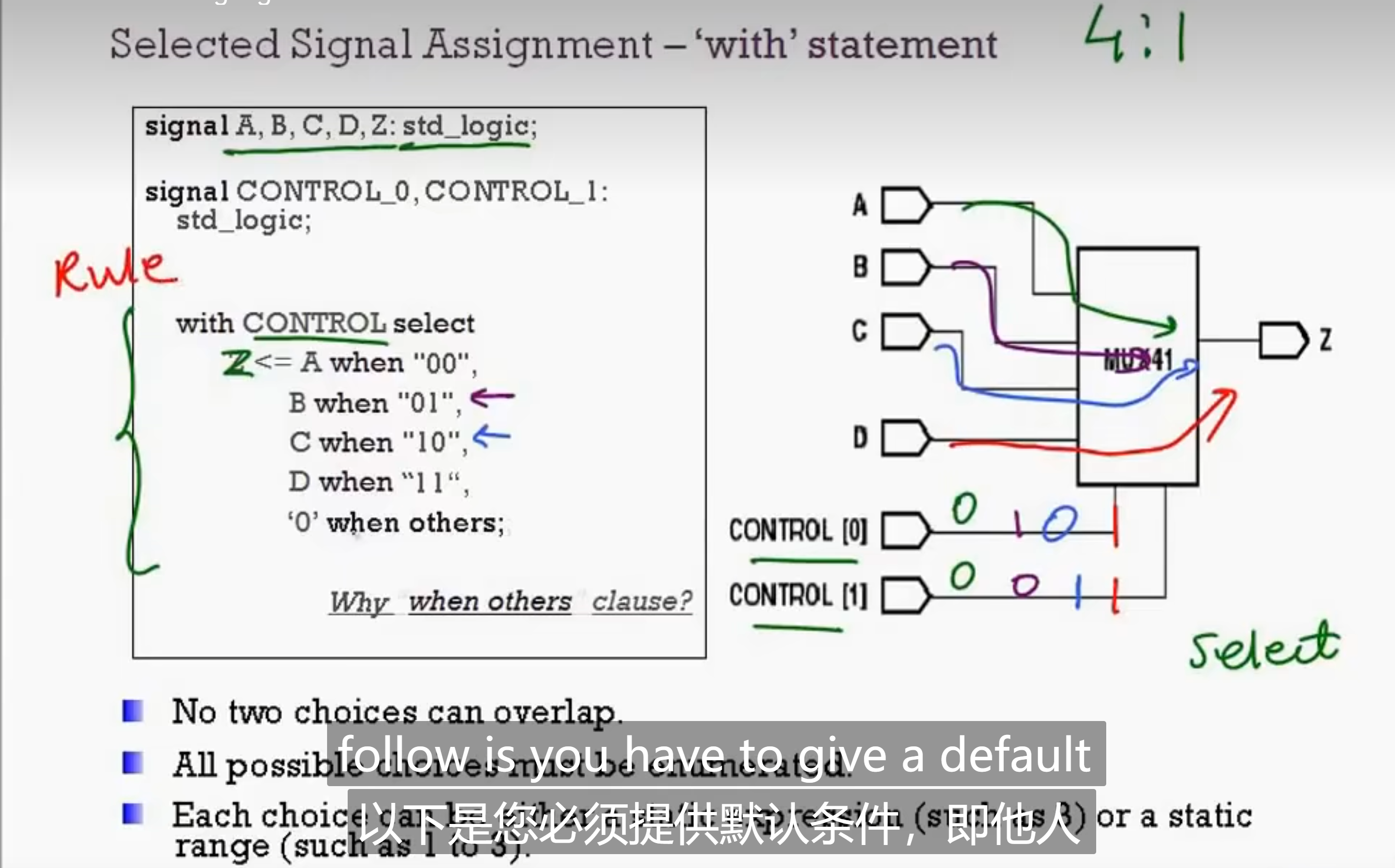

With select
